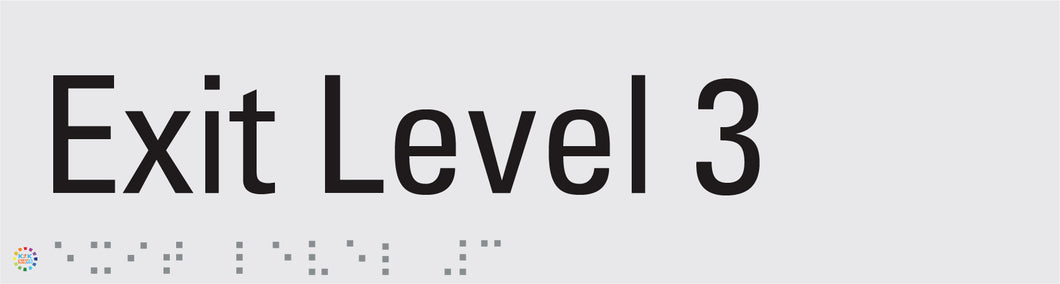

Product Info
- Size : 180mm (Width) x 50mm (Height)
- Material : 3mm Thick Silver PVC
Our Braille signs are:
- BCA/NCC compliant - Part D4D7, Specification 15 & AS1428.1-2009.
- Injection moulded as one complete unit for quality & hygiene purposes.
- Weather and vandal resistant.
- Suitable for indoor & outdoor application.
- Sign comes with double sided tape for easy install.
- We DO NOT print our company’s logo on signs.
Installation Guide
- BCA/NCC Specification D3.6 Requirements
Location of Braille and Tactile Signs
Signs must be installed as follows:
1. Braille and tactile components of a sign must be installed not less than 1200mm and not higher than 1600mm above the floor or ground surface.
2. Signs with single lines of characters must have the line of tactile characters not less than 1250mm and not higher than 1350mm above the floor or ground surface.
3. Signs identifying rooms or facilities must be installed on the wall latch side of the door with the leading edge of the sign located between 50mm and 300mm from the architrave.
4. Where it is not possible to be installed latch door side of the wall, the sign may be installed on the door itself.
5. Signs identifying a fire exit door must be installed on the side that faces a person seeking egress, and on the wall latch side of the door with the leading edge of the sign located
between 50mm and 300mm from the architrave.
6. Where it is not possible to be installed latch door side of the wall, the sign may be placed on the door itself.
Left Hand & Right Hand Transfer Accessible Toilets
Right or left hand transfer.
SELF-ADHESIVE VINYL
CONSTRUCTION
Flexible self-adhesive material. Can adhere to virtually any clean, dry surface. Well suited to flat or soft curved texture.
COMMON USES
Indoor or outdoor conditions. Directional,Safety. On pipes,poles,containers,windows,equipments,storage racks,tanks,etc.
PLASTIC
CONSTRUCTION
Thick Plastic made from over 50% recycled material, this UV stabilized rigid sign and is one of our most popular choices!
COMMON USES
Directional, safety, informational, special event, departmental, equipment, temporary construction, wall or post mounting.
METAL
CONSTRUCTION
A strong, thick rigid material manufactured from steel guaranteed to withstand high temperature range.
COMMON USES
Entrance, exit, traffic, parking, building, construction, safety, directional, wall or post mounting.
MAGNETIC
CONSTRUCTION
A strong, 0.9mm flexible magnet material has excellent holding force suitable and is flexible yet tough and weather resistant.
COMMON USES
Suitable for use on cars, trucks, trailers, safety signs, A-Boards and all outdoor metallic surface signage applications.
REFLECTIVE CLASS 2
Class 2 Reflective Signs are ideal for non-critical, off-road situations that require high visibility in poor or low light conditions. These situations would include work premises signage, carparks, properties, shopping centres, general signage, private roads etc.
REFLECTIVE CLASS 1
Class 1 reflective is the higher grade of reflectivity, and it is identifiable by its honeycomb pattern. It is used where high visibility is required for 24 hours of the day. It is a premium grade reflective, that reflects light from wide angles. All signs used on a public roads must be Class 1 to comply. This would include all road signs, street signs, speed limit signs and roadwork signage to name a few.
